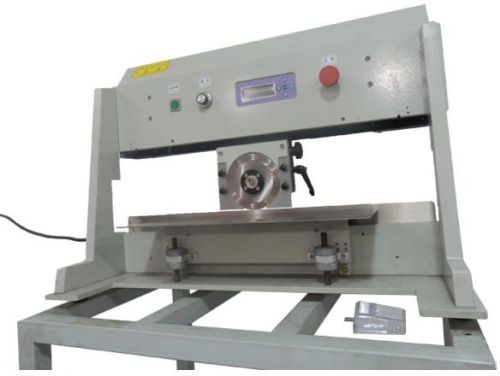

PCB Cutting Machine, Brand Name : Chuangwei

We are offering pcb cutting machine.
1.blade move automatically and cut both small and large pcbs fast and economically
2.specially for resin substrate pcb with pre-scored v groove
3.safety use and easy operation
specifications:
model: cwv-1a
pcb cutting length: 460 or 600 mm(can custom made)
pcb cutting speed: 100,200,300,500 mmsec
pcb cutting thickness: 0.6-3.5 mm
blade motion: upper circular blade moving automatically
blade motive power operating mode: motor-driven
voltage and power: 220v110v 90w
pcb cutting machine size: 770*510*450mm
pcb cutting machine weight: 55kg
features:
1.firm machine structure be designed to prevent electronic circuit, solder point, and solder cutting area of pcb from damage by unsuitable force.
2.effectively reduce stress and prevent solder point chap from pcb cutting.
3.pcb cutting speed can be adjusted by the rotary knob.
4.pcb cutting stroke can be set free and setting value can be showed in lcd.
5.clearance between circular and linear blades are adjusted to fit different v groove depth and compensates for blade wear out.
6.optional pcb conveyor belt to remove finished pcb cut.
