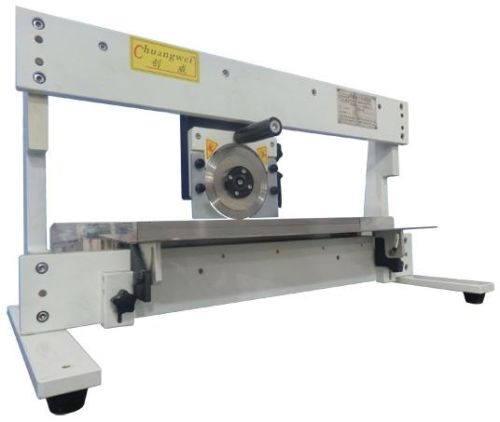

PCB Cutting Machine, Brand Name : Chuangwei

We are offering chuangwei manual v-cut pcb cutting machine.
1.pcb cutting controlled by hand
2.the price is very economical
3.cut the pcb with various sizes and pre-scored v groove
4.easy maintanance and operation
5.low bending stress,no vibration
chuangwei manual v-cut pcb cutting machine specifications:
model: cwv-1m460
max. Pcb cutting length: 460mm
pcb cutting thickness: 0.6-3.5mm
pcb cutting speed control: by hand
pcb cutting machine size: 787x400x436mm
pcb cutting machine weight: 30kg
model: cwv-1m720
max. Pcb cutting length: 720mm
pcb cutting thickness: 0.6-3.5mm
pcb cutting speed control: by hand
pcb cutting machine size: 1027x400x436mm
pcb cutting machine weight: 45kg
chuangwei manual v-cut pcb cutting machine descriptions:
1.cutting type:up component side(circular blade),down solder side(linear blade)
2.cutting for small and large pcb with pre-scored v groove
3.cutting pre-scored v groove pcb assembly without stress on either pcb or component
4.cutting speed is controlled by hand and very easy to operate
5.large stainless steel platform on both side of cutting blade prevents pcb shaking and the table height and angle could be adjustable
6.the pcb is placed with its pre-scored v groove onto the linear blade and the circular blade is then drawn by hand across the pcb to cut
7.clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.it is to ensure that the pcb is only cut in the pre-scored v groove.
