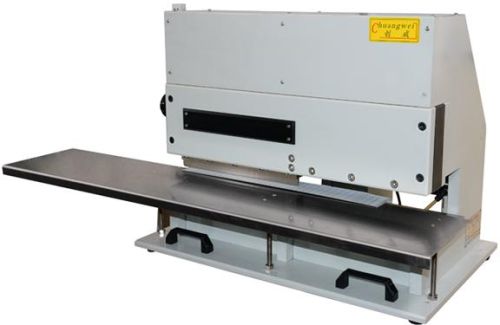

PCB Depaneling Machine, Brand Name : Chuangwei

V-cut pcb depaneling machine
1.max. Pcb depaneling length is unlimted
2.depaneling pcb without bending and tension stress
3.safety use, easy operation
4.depaneling process without vibrations
v-cut pcb depaneling machine specifications:
●model: cwvc-3
●max. Pcb depaneling length: unlimited
●pcb depaneling thickness: 0.3-3.5mm
●voltage and power: 110v220v -- 10w
●working air pressure: 0.5-0.7mpa
●pcb depaneling speed:due to operator skilled level
●pcb depaneling machine size: 780x500x620mm
●pcb depaneling machine weight: 185kg
v-cut pcb depaneling machine features:
1.the machine was designed to depanel pre-scored pcb carefully, without bending and tension stress.
2.even sensitive smd-components like ceramic capacitors, will not be damaged by the depaneling process, or thin board even to 0.3mm can be worked safely.
3.depaneling process without vibrations.
4.pcb depaneling control method is by pneumatic-driven and electromagnetic valve.
5.pcb control operation is that operator stamps the foot pedal to depanel pcb.
6.highest components near the v groove of pcb can be up to 50mm.
7.gap for insertion of pcb can be easy to adjust.
