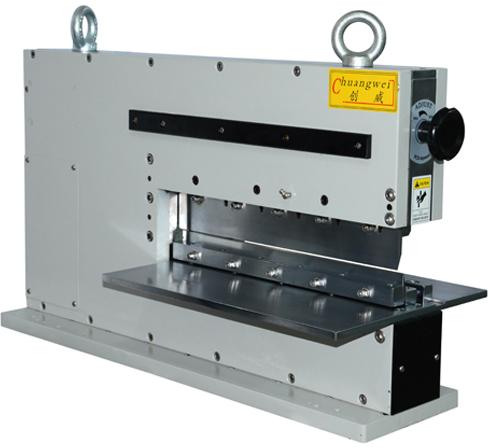

PCB Depaneling Machine, Brand Name : Chuangwei

We are offering v-cut pcb depaneling machine.
1.easy maintenance and operation
2.thin pcb even to 0.3mm can be depaneled safely
3.depaneling process without vibrations due to pneumatic drive unit
specifications
model: cwvc-2l
max. Pcb depaneling length: 330mm(can custom made)
pcb depaneling thickness: 0.3-3.5mm
voltage and power: 110v220v -- 10w
working air pressure: 0.5-0.7mpa
pcb depaneling speed: due to operator skilled level
pcb depaneling machine size: 620*230*400mm
pcb depaneling machine weight: 165kg
features
1.pneumatically driven and electromagnetic valve control.
2.depaneling process without vibrations due to pneumatic drive unit .
3.depaneling pcbs with sensitive smd, capacitors or thin board even to 0.3mm can be depaneled safely.
4.depaneling operation is that operator stamps the foot pedal to depanel pcb.
5.highest components near the v groove of pcb can be up to 70mm.
6.the minimum distance is allowed to be 0.5mm between v groove and the electronic components.
7.gap for insertion of pcb can be easy to adjust by the adjusting knob in front of the machine.
