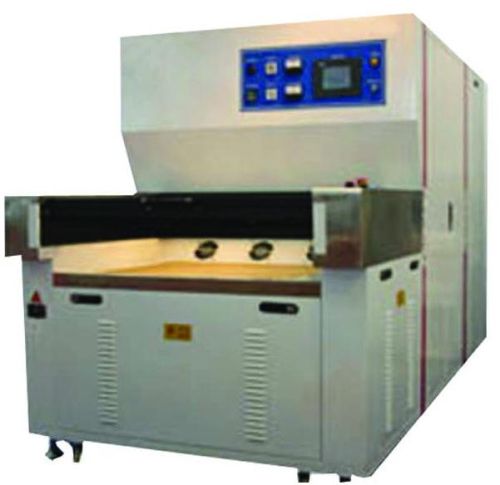

PCB Exposure Machine

PCB Exposure machine
Parameters:
Model Number: B6090 B8565
Appearance: 1550*2750*2150mm 1550*2750*2150mm 2100*1200*1900mm 2100*1200*1900mm
Exposure area: 600*900mm 600*900mm 850*650mm 850*650mm
Power: 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Lamp: Iodine gallium light(7KW/PC,2PCS) Iodine gallium light(1KW/PC,2PCS) Iodine gallium light(7KW/PC,2PCS) Iodine gallium light(7KW/PC,2PCS)
Exposure type: Double sides Double sides Double sides Double sides
Cooling system: Water-cooling Air-cooling system Water-cooling Air-cooling system
Control Systems:
Automatic Exposure times Control System
Automatic Flash Control System
Vacuum Pressure System
Water Cooling System
Features:
1.Electric shutter control system, advanced touch type man-machine interface control mode is more convenient and quickly. Simultaneously provides the more perfect product management system to get more precision and good exposure effection.
2.Approximate collimated light brilliant area double surface work with 850*650mm, equality nature of light degree over 85%, has provided the bigger precision processing area and higher processing efficiency
3.PCL controlling, and top and bottom exposure with individual controlling.
4.This Double-sided exposure machine is a Exposing& Plate making equipments for double surface photoengraving, adopts vacuum, forced air-cooled, high-volume operations can be a long, double exposure, accurate and reliable. Imported vacuum film, high transmittance and good effect.
5.This exposure equipment has Vacuum stress system to get high precision, exposing tolerance could reach ±0.02mm
6.The machine is made of PP plate, which is heat-resistant, corrosion-resistant and strain-resistant.
7.Timely service, one year warranty, life-long maintenance
8.Provide free training for customers in any places.
9. Non-standard sizes can be customized according to different business requirements
Applications:
1.It can be used for precise stencil exposing work ,mainly used in business decoration and PCB industry.
