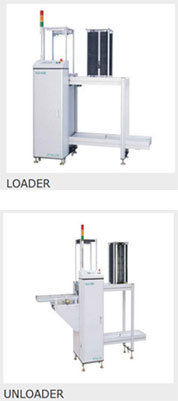

PCB Loader Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Application Applied to load the PCB form magazines one by one the downstream machine (such as printers) or unhold & storage the PCBs from upstream machine. Features Stable & durable structure....

View More Details

Send Enquiry

Company Information

Test & Research India Pvt. Ltd.

Mannadi, Chennai, Tamil Nadu

View Number

Member Since 11 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Application

Applied to load the PCB form magazines one by one the downstream machine (such as printers) or unhold & storage the PCBs from upstream machine.

Features

Stable & durable structure to ensure the transmission is smooth.
Touch screen operation interface, easy and simple.
It is compatible to all kind of standard PCB magazines.
The up & down step pitch is available adjusting by the thickness of PCB of PCBA.
Equipped with the sound and light alarm function to awake the operator.
Standard with SMEMA ports & cables, available for dual lane, dual speed control & tailor-made for different width & length.

Items	Description	HLD - 400B / HULD - 400B	HLD - 400C / HULD - 400C	HLD - 400D / HULD - 400D	HLD - 460C / HULD - 460C
1	Dimension L x W x H(mm)	HLD: 11257651250	HLD: 13358451250	HLD: 15059101250	HLD: 18609701250
1	Dimension L x W x H(mm)	HULD: 15507651250	HULD: 18608451250	HULD: 20609101250	HULD: 23309701250
2	Weight(Kg)	HLD: 180Kg	HLD: 210Kg	HLD: 240Kg	HLD: 280Kg
2	Weight(Kg)	HULD: 200Kg	HULD: 230Kg	HULD: 260Kg	HULD: 290Kg
3	Power Supply	1 Phase. 220V AC 50/60Hz
4	Total Power	HLD: 225W HULD: 240W	HLD: 255W HLD: 270W	HLD: 275W HLD: 290W
5	Air Supply	5 - 7 Kg/cm2
6	*PCB Max. Size (LW)**	330* (60 - 250) (mm)	400* (60 - 330) (mm)	525* (60 - 400) (mm)	530* (60 - 460)(mm)
6	Magazine Size (mm)	355320565	400460565	535460565	535530565
7	Conveyor Height	900+/-20 (mm)
8	PCB Flow Direction	Left to Right (Or Right to Left)
9	Step Pitch Setting	10,20,30,40,50 (mm)	PLC + Touch Screen Panel
10	Control Method	10,20,30,40,50 (mm)	PLC + Touch Screen Panel
11	Pusher	SMC Cylinder
12	SMEMA Interface	Standard
13	Export Vacuum Package	Standard
