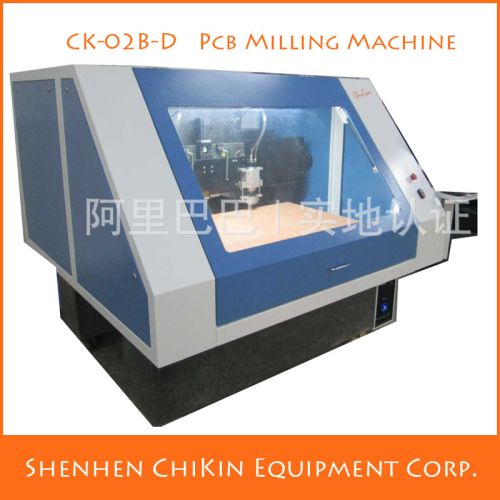

PCB Milling Automation Machine

₹ 14.48 Lakh / 40000 40000 Set

MOQ1 Set(s)
ConditionNew
Rated Power1.2KW
UsageAll kinds of PCB and aluminum plate drilling and routing
Number Of FlowerPCB Milling machine
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

ConditionNew
Number Of FlowerPCB Milling machine
Rated Power1.2KW
UsageAll kinds of PCB and aluminum plate drilling and routing
Weight5000KG
MertialGranite marble
Automatic PIN Quit Deviceoptional
Spindle speed60Krpm

We are offering pcb milling automation machine.
Spindle number, 2
spindle model, ck-02b-d
spindle speed, 60krpm
nc system, chikin cnc
drive system, servo
spindle type, water-cooled
operating interface, chineseenglish
positioning accuracy, ± 0.005mm
molding precision, ±0.05mm
dilling diameter, 0.6-6.0mm
milling diameter, 0.6-3.175mm
size of the work, 1120*680mm
size of the machine, 3200*1850*1700mm
air supply, 6-8 bar
tool magazine capacity, 11 pcs
cuttingknife datection, have opional
working power, ac220v50hz5kva
xyz rail, germany star
x.y.z ballscrew, germany star
x y axis displacement speed, 20-30mmin
z axis displacement speed, 20-30mmin

Additional Information

Payment Terms L/C, T/TWestern Union
Port of DispatchYANTIAN/ SHEKOU/ CHIWAN PORT
Packaging DetailsStandard Solid wooden cases Or according to customers' requirements
Delivery Time15-30 Days after 30% deposit
