Granite Marble PCB Milling Machine

₹ 19.01 Lakh / 30000 30000 Set

MOQ1 Set(s)
MaterialGranite Marble
ConditionNew
UsageAll kinds of PCB and aluminum plate drilling and routing
Total Carbohydrate12 Months
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

ConditionNew
Total Carbohydrate12 Months
MaterialGranite Marble
Number Of FlowerPCB milling machine
UsageAll kinds of PCB and aluminum plate drilling and routing
Weight2600KG

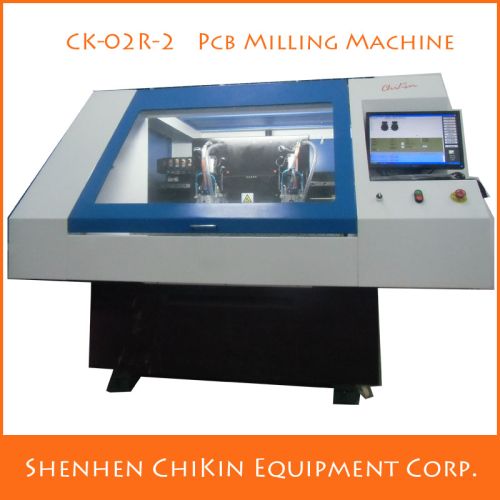

We offer Pcb Milling Machine.
Spindle number, 2
spindle model, CK-02R-2
NC system, CHIKIN CNC
Drive system, Servo
spindle type, water-cooled
operating interface, Chinese interface
Positioning accurac,y ± 0.005mm
molding accuracy, ±0.05mm
Dilling diameter, 0.6-6.0mm
milling diameter, 0.6-3.175mm
Size of the working table, 560*680mm
Size of the machine, 2100*1850*1700mm
Air Supply, 6-8 bar
Tool magazine capacity, 11PCS
Radius,knife,cuttingknife datection, Have Opional
working power, 220V 50Hz
XYZ Rail, Taiwan Germany STAR
XYZ Screw, Germany STAR
Z axis displacement speed, 15-30mmin

Additional Information

Payment Terms L/C, T/TWestern Union
Port of DispatchYANTIAN / SHEKOU / CHIWAN PORT
Packaging DetailsStandard Solid wooden cases Or according to customers' requirements
Delivery Time15-30 Days after 30 deposit
