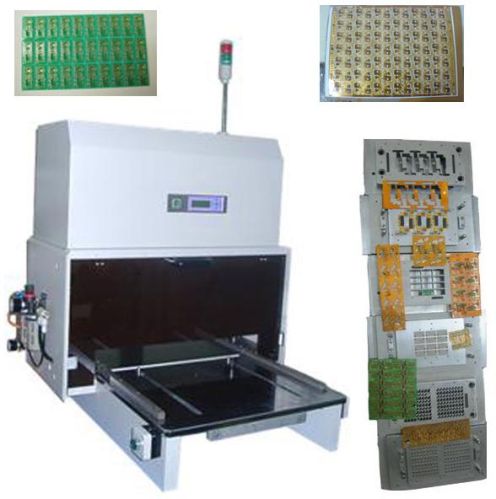

PCB Punching Machine, Brand Name : Chuangwei

Pcb punching machine
1.high degree automation,high efficiency,simple operation
2.can replace multiple mold for production and mold changing easily
3,apply to cut rigid pcb,flexible pcb(fpc),rigid-flexible pcb
pcb punching machine specifications:
model: cwpl
punch contribute (t): 8
working area (mm): 460*320
voltage: 110220v
working air pressure: 0.5-0.7mpa
size (mm): 930*880*1230
weight (kg): 680
in addition:
model: cwpm
punch contribute (t): 8
working area (mm): 330*220
voltage: 110220v
working air pressure: 0.5-0.7mpa
size (mm): 800x730x1230
weight (kg): 580
pcb punching machine features:
1.high degree automation, operation is simple and safe.
2.can replace a variety of mold, and mold changing easily.
3.the lower mold automatic in and out, easy to pick and place products, finished products can fall into the drawer.
4.make internal stress generated by pcb cutting to minimize and avoid tin stress cracking.
5.punching cutting semi-finished pcb with high efficiency.
6.mould and die can be made according to customer's request.
