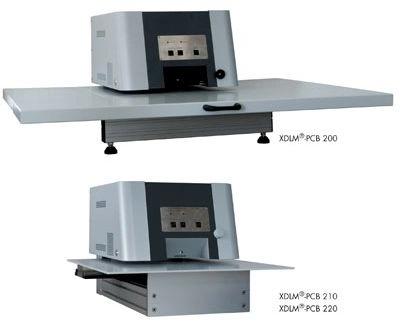

PCB XDLM PCB 210 XRF Spectrometer

Coating thickness measurement for PCB using XDLM PCB 210 is a qualitative range of devices available in various technical specifications. These are extensively acknowledged as specific X-ray fluorescence measuring instruments for measurements and analyses of coating thicknesses and compositions on printed circuit boards. These are acclaimed for its longer service life and outstanding accuracy.
Applications

• Measurements on small components and structures on printed circuit boards in sizes up to 610 x 610 mm (24 x 24 in)
• Measurements of functional coatings in the electronics and semiconductor industries
• XDLM-PCB 210 and 220: Automated measurements, e.g., in quality control
• Determining the composition of electroplating baths

General Specification

• Intended use: Energy dispersive x-ray fluorescence measuring instrument (EDXRF) to determine thin coatings, small structures and alloys.
• Element range: Chlorine (17) to Uranium U (92)  up to 24 elements simultaneously.
• Design: Bench-top unit with housing with a slot on the side
• Measuring direction: Top down
