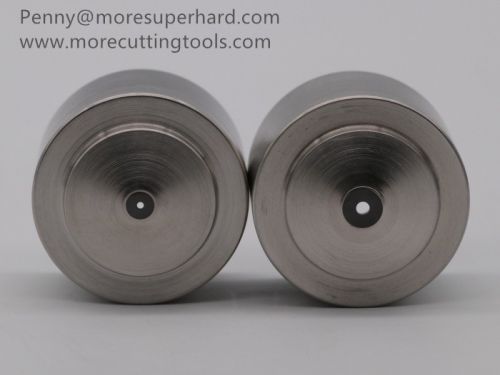

Pcd Drawing Dies, Brand Name : Moresuperhard for Industrial Use

PCD dies are ideal for long production runs and for drawing abrasive wire materials as they outlast TC, SSCD, and ND dies.

PCD dies to provide uniform hardness and extended wear resistance in all directions.

Specification: K01 K05 K10 K20 K30 K40

Application: wire drawing, steel drawing, etc.

Specification

PCD Drawing DiesWhat is a drawing die?

In metal pressure processing, the metal is forced through the die under the action of external force, so that the metal cross-sectional area is compressed and the required cross-sectional area shape and size are obtained. We call it a drawing die.

PCD Drawing Dies

PCD Drawing dies are ideal for long production runs and for drawing abrasive wire materials as they outlast TC, SSCD, and ND dies.

Polycrystalline diamond dies are available in various grain sizes, both in supported and unsupported configurations.

PCD dies to provide uniform hardness and extended wear resistance in all directions.

Wire drawing dies are commonly used to reduce the diameter of various ferrous and non-ferrous rods and wires. Applications include high, medium, and low voltage cables, automotive, medical wires, superconducting, bonding, and welding wires.

Advantages of PCD Drawing Dies

▶Long-lasting (outlasts TC and SSCD/ND dies)

▶Ideal for long production runs

▶Ideal for highly abrasive wire materials

▶The wire remains round, even with significant die-wear

▶Tailored to wire alloy

Features of PCD Drawing Dies

▶Usable with dry and wet draw

▶Available in any casing size

▶Various grain sizes are available

▶Dies available for high-temperature applications

▶Tight-tolerance dies available
