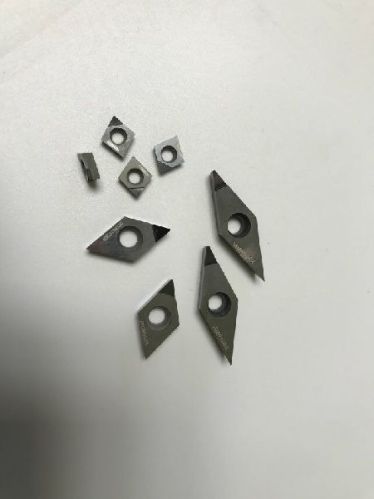

Pcd Tipped Carbide Inserts, Packaging Type : Black

pcd tipped carbide inserts for rock bits
Features of PCD Inserts
1. The PCD insert meets the international standard of ISO.
2. High abrasive resistance, high processing precision, good thermal conductivity and long service life.
3. The cutting edge of PCD insert is sharp, it can realize high speed cutting and hard material cutting with high work efficiency and facilitate fast clamping.
4. Our PCD insert can be used repeatedly, which helps to lower your processing cost.
Specification
Processing Materials Product Range
Aluminum Alloy
 Piston, cylinder, wheel hub, transmission case, pump body, admission pipe and various shell parts for cars and motorcycles.
Tank body, shell and compressor parts for airplanes and electro mechanical products.
Tank body, shell and compressor parts for airplanes and electro mechanical products.
Parts for pump body and oil press.
Model Dimension (mm)
L C s d R
VNGA160404 16.6 9.525 4.76 3.81 0.4
VBGW160404 16.6 9.525 4.76 4.4 0.4
DCGW11T302 11.6 9.525 3.97 4.4 0.2
DNGA150404 15.5 12.7 4.76 5.16 0.4
TNGA160402 16.5 9.525 4.76 3.81 0.2
TCGW16T308 16.5 9.525 3.97 4.3 0.8
CCGW060204 6.4 6.35 2.38 2.8 0.4
TNGA160404 16.5 9.525 4.76 3.81 0.4
SNGA09T302 9.525 9.525 3.97 4.4 0.2
SNGN150412 15.5 12.7 4.76 5.16 0.8
