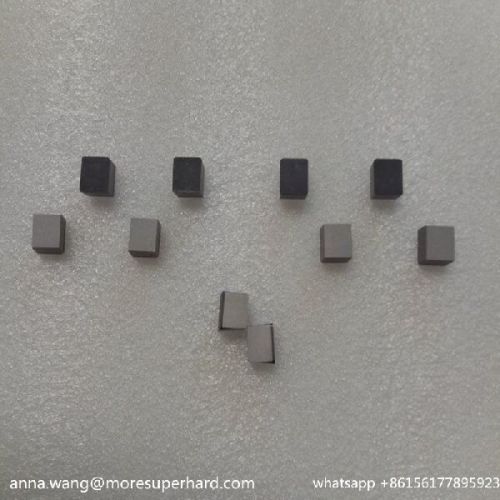

Contact SupplierPCD Inserts,PCD Tips
Features of PCD Inserts
1. The PCD insert meets the international standard of ISO.
2. High abrasive resistance, high processing precision, good thermal conductivity and long service life.
3. The cutting edge of PCD insert is sharp, it can realize high speed cutting and hard material cutting with high work efficiency and facilitate fast clamping.
4. Our PCD insert can be used repeatedly, which helps to lower your processing cost.
Model Dimension (mm)
L C s d R
VNGA160404 16.6 9.525 4.76 3.81 0.4
VBGW160404 16.6 9.525 4.76 4.4 0.4
DCGW11T302 11.6 9.525 3.97 4.4 0.2
DNGA150404 15.5 12.7 4.76 5.16 0.4
TNGA160402 16.5 9.525 4.76 3.81 0.2
TCGW16T308 16.5 9.525 3.97 4.3 0.8
CCGW060204 6.4 6.35 2.38 2.8 0.4
TNGA160404 16.5 9.525 4.76 3.81 0.4
SNGA09T302 9.525 9.525 3.97 4.4 0.2
SNGN150412 15.5 12.7 4.76 5.16 0.8
Â
Material
The tool bit uses PCD blanks manufactured by world famous companies.
The body part uses high quality tungsten carbide.
