PD & Hot Spots Detection & Localization System For Power Transformers

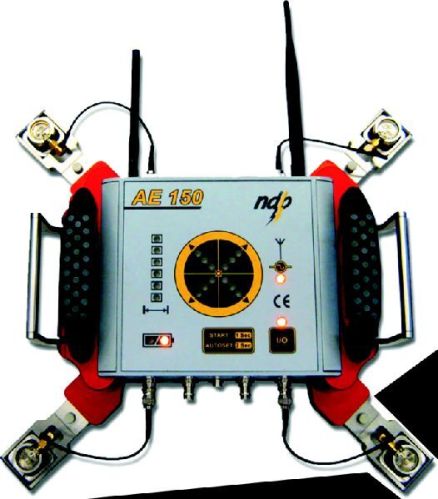

The AE-150™ is designed to detect and localize Partial Discharge activity by correlating acoustic and electric sensors' data. The AE-150™ has many acquisition modes, each used for detecting and locating Partial Discharge activity in a transformer. The AE-150™ unit is mounted on the transformer tank using its powerful magnets that also hold four acoustic sensors. Acquired data is sent to Mirador-Tx software where all advanced positioning functions are implemented. This cutting edge software allows easy data interpretation, reporting and monitoring.

• Easy to install and use
• Portable, battery-operated, wireless data transfer, weatherproof
• Mirador-Tx software allows automatic configuration and 3D positioning
• Simultaneous processing of AE and PD signals
• NEW: Monitoring Feature!
