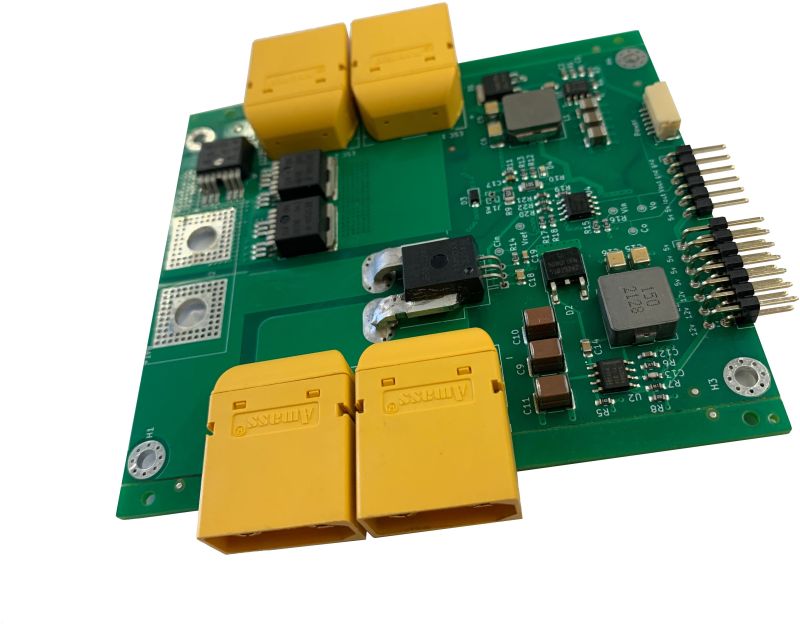

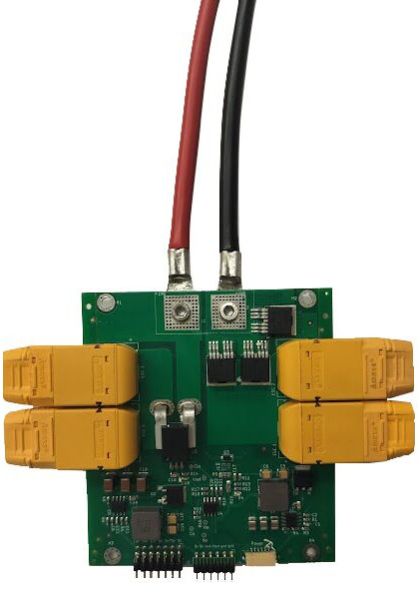

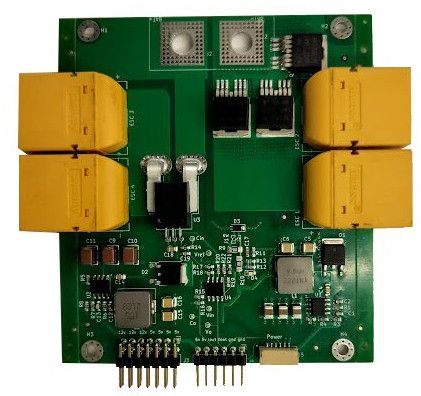

Pdb 200a Power Distribution Panel, Color : Green

High Current Capacity: Capable of handling high current (up to 200A).

Anti spark soft switching for inductive loads.

Input voltage up to 15-48V (12S).

4x XT90 connectors 50A each for ESC with Motor.

Analoge battery voltage and current sensors output for  Flight controllers and Robotic applications.

DC - DC convertor from 15-48 V input (up to 12S battery) to 5V 5A output.

DC - DC convertor from 15-48 V input (up to 12S battery) to 12V 5A output.

5V and 12V power output terminals (standard 2.54mm/0.1" connectors).

Power output for the flight controller (example Pixhawk, Orange cube).                                                                                                           100% Made in India with non-Chinese components under the Make in India program
