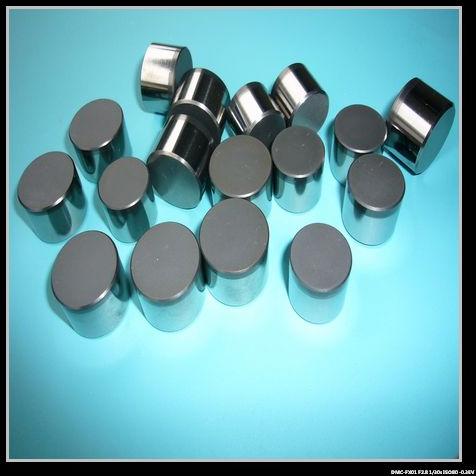

Pdc Cutter For Oil Well Field

Diamond Fixed Cutter Bit Inserts size availability
Model
Diameter
Height
Diamond Thickness
Diamond Chamfer
Cabide substrate chamfer
SDP1925H
19.05mm
25.0mm
1.8-2.5mm
0.3mm�45°
0.3mm�45°
SDP1913H
19.05mm
13.2mm
1.8-2.5mm
0.3mm�45°
0.3mm�45°
SDP1908H
19.05mm
8.0mm
1.8-2.5mm
0.3mm�45°
0.3mm�45°
SDP1613H
16.00mm
13.2mm
1.8-2.5mm
0.3mm�45°
0.3mm�45°
SDP1608H
16.00mm
8.0mm
1.8-2.5m
0.3mm�45°
0.3mm�45°
SDP1313H
13.44mm
13.2mm
1.8-2.5mm
0.3mm�45°
0.3mm�45°
SDP1308H
13.44mm
8.0mm
1.8-2.5mm
0.3mm�45°
0.3mm�45°
PDC cutter for coal mining
Model
Diameter
Height
diamond thickness
Diamond Chamfer
Carbide substrate chamfer
SDP1908H
19.05mm
8.0mm
1.8-2.0mm
0.3mm�45°
0.5mm�45°
SDP1608H
16.00mm
8.0mm
1.8-2.0mm
0.3mm�45°
0.5mm�45°
SDP1308H
13.44mm
8.0mm
1.8-2.0mm
0.3mm�45°
0.5mm�45°
SDP1308M
13.44mm
8.0mm
1.6-1.8mm
0.3mm�45°
0.5mm�45°
SDP1304H
13.30mm
4.5mm
1.6-1.8mm
0.3mm�45°
0.5mm�45°
SDP1304M
13.30mm
4.5mm
1.4-1.6mm
0.3mm�45°
0.5mm�45°
SDP1304S
13.30mm
4.5mm
1.1-1.3mm
0.3mm�45°
0.5mm�45°
SDP1304L
13.30mm
4.5mm
1.1-1.3mm
0.3mm�45°
0.5mm�45°
