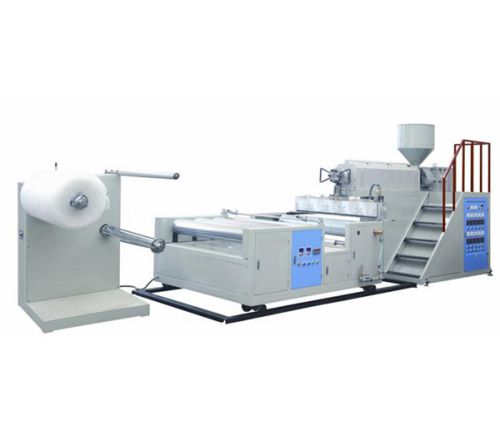

PE Air Bubble Wrap Film Making Machine

Air Bubble Film Making Machine we have model from KYPE-600 to KYPE-3000, film width from 600mm to 3000mm. Most popular model is KYPE-1200, that is to make film width of 1200mm.  It is making double layer air cushion film, that is one bubble layer another flat layer. The bubble forming roller size can be customized, bubble diameter from 5mm to 30mm. Brand new material (LDPE) and recycled material (LDPE) can be used on the machine, also can mix with LLDPE to save the cost, by mixing with color master batch the machine can make colorful bubble film.  Model KYPE-600 KYPE-800 KYPE-1000 KYPE-1200     KYPE-1300 Diameter of Screw Stem φ50 mm φ55 mm φ60 mm φ65 mm φ65 mm LD Ratio of Screw 30:1 30:1 30:1 30:1 30:1 Material of Scerw & Barrel 38 CrMoALA 38 CrMoALA 38 CrMoALA 38 CrMoALA 38 CrMoALA Heating way Casting-aluminum heating device Casting-aluminum heating device Casting-aluminum heating device Casting-aluminum heating device Casting-aluminum heating device Width of T-die Head 750 mm 950 mm 1150 mm 1350 mm 1450 mm Width of Bubble Roller 680 mm 880 mm 1080 mm 1280 mm 1280 mm Width of Products 600mm 800mm 1000 mm 1200 mm 1300 mm Thickness 0. 06--0.25 mm 0. 06-0. 25 mm 0. 06-0. 25 mm 0. 06-0. 25 mm 0. 06-0. 25 mm Main Motor 7.5 kw 11 kw 15 kw 15 kw 15 kw Tractiong Motor 0.75 kw*2 1.1 kw*2 1.1 kw*2 1.1 kw 1.1 kw Total Power 30 kw 35 kw 50 kw 58 kw 58 kw rewinder double-station, auto changer double-station, auto changer double-station.
