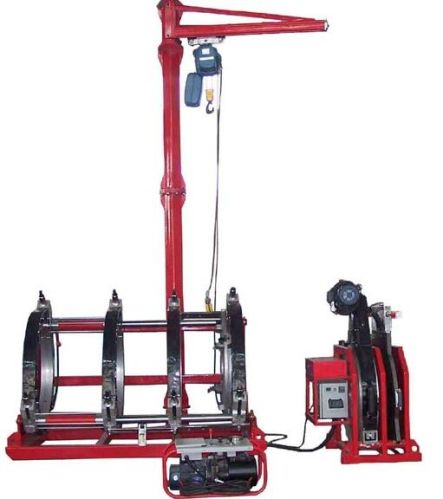

PE Pipe Butt Welding Machine

Suitable for butt welding of plastic pipes and fittings made of pe, pp and pvdf in a ditch in worksite or workshop.
　the equipment is mainly composed of basic frame, hydraulic unit, planning tool, heating plate and support for planning tool & heating plate.
　the main components are aluminum alloy die-casting molding, light weight, corrosion resistance and high strength. Small and delicate, user friendly.
　removable ptfe coated heating plate with high accurate temperature control system. 　　
hydraulic unit is equipped with the accumulator, which guarantees the pressure to ensure the welding quality.
　electrial planning tool.
changeable welding podition enables to weld various fittings more easily.
separate two-channel timer records time in soaking and cooling phases.
　technical parameters：
model
　shd800
pipe size(mm)
　 450mm---800mm
heating plate max. Temp. 250℃
ambient temp.
　　-5~45℃
working voltage
　　380v、50hz
heating plate power
　12.5kw
planing tool power
　　2.2kw
hydraulic unit power 1.5kw
crane power 0.5kw
total power
　 16.7kw
