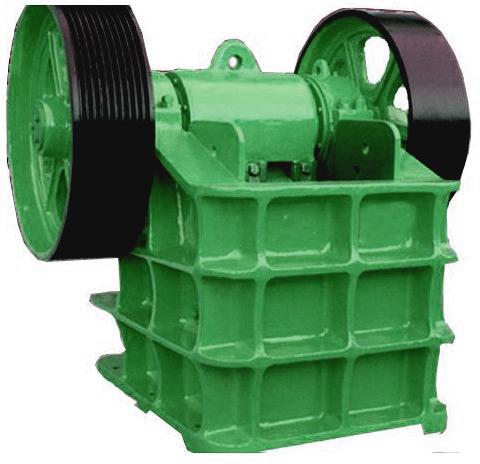

Pe Series Jaw Crusher, Brand Name : GYFY

we are offering pe series jaw crusher. description:
this series of jaw crusher is mainly used in metallurgy, mining, chemical, cement, construction, refractory and ceramics and other industrial sectors crushed and crushing all kinds of hard ore and rock
the series jaw crusher (broken jaw) is the best suited to various soft and hard ores, crushing compression strength not higher than 300mpa, shall not be greater than the largest block of material to be broken under the technical parameters table
structure and operating principle:
the distinctive feature of this class of crusher is the two plates which open and shut like animal jaws
this machine is powered by the motor connected to belts, the two jaws are set at an acute angle to each other
when one jaw is pivoted periodically, it swings relatively to the other fixed jaw
materials fed into the jaws are alternately nipped when the swing jaw moves close to the fixed one
when the swing jaw moves away from the fixed one, the crushed materials will be released to fall further into the crushing chamber
eventually, the crushed materials fall from the discharge aperture
product feature
world-class skills in making are adopted and the use of high-tech materials
more advanced movable jaw assembly makes it more long-lasting
integrated cast steel structure is adopted in axle bearing housing
summarized structure v is adopted in the crushing cavity, makes the actual feed mouth width equal to the set width of the feeding opening
use of finite element analysis technology makes the crusher with high intensity
large gape feeding opening, improves the feeding ability and capacity
adjustable output size, satisfies different needs
high ratio of crushing, uniform final size
