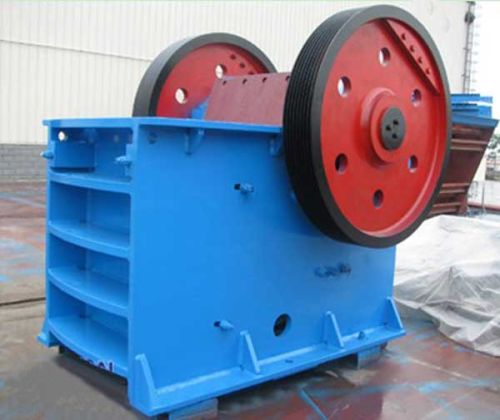

Pe Standard Stone Jaw Crusher for like limestone, iron ore

We are offering pe standard stone jaw crusher.
(1) application:
pe.pex series single toggle jaw crusher has the features of great crushing ratio, uniform sizes of promance. It can be used to crush material its compressive resistance not more than 320 mpa. It is widely used in various industries, such as mining, smelting, road and railway construction and chemical industry etc.
pe series is used to primary crushing; pex series is used in secondary crushing and fine crushing.
(2) composition-structure:
it is made up of frame, eccentric shaft, grooved wheel, flywheel, moving jaw, side guard plate, toggle plate, toggle backseat, adjusting screw, returning spring, fixed jaw plate and moving jaw plate. Toggle plate is of safety function.
(3) working principle:
this crusher adopts the electric motor as the power. The eccentric shaft is revolved by an electric motor through v-belts. It causes the swing jaw following the preconcerted path to crush the feeding material. Thus the material will be crushed in the crushing chamber which is composed of the stationary jaw plate, swing jaw plate and the liner plate. The material is discharged from the lower part of machine that is what you want.
(4) features and benefits:
1 simple structure and reliable operation;
2 convenient maintenance and low operation cost.
3 motor slide track of cast iron is distributed, easy to adjust the belt tightness regularly.
note: capacity depends on properties, shape, size of the material fed in the crusher, moisture content and the soft and hard degree of the material etc. The hard fragile material is easier to be crushed comparing to hard flexible material. And the laminated material is easier to be crushed than the spherical material.
different-size blend material is easier than single- content material. Contrarily, if the material exceeds the max feed size or the opening is jammed by the material, the capacity of the crusher can be reduced.
in order to ensure this crusher running in high efficiency and having long lifetime, the users should meet the balanced feeding requirement. So a corresponding feeder is necessary for this jaw crusher.
for dry and med-hard material, the standard function data of this jaw crusher is 1.6 tons/cubic mete
