PE Strapping Machine

Pe packaging machine,pe strapping machine,double-end pe packaging machine(baler)

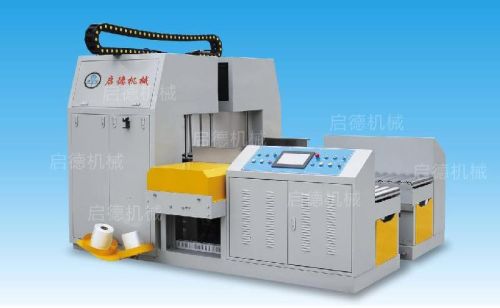

yxd-050 1400mm double servo control full-automatic double-end pe packaging machine(baler)
specification for pe packaging machine,pe strapping machine,double-end pe packaging machine(baler)
specification yxd-050
1400mm
max length 2000mm
min length 400mm
max width 1400mm
min width 300mm
max height 300mm
min height 40mm
packaging capacity 30±2 packsminute, namely 28 packsminute or 32 packsminute
strapping size pe string 28# 32#
machine length 3500mm
machine width 2800mm
machine height 2000mm
machine weight 3000kg
power 3.5kw
working air pressure 0.6mpa
features:
easy operation:electronically controlled for all size,high speed, no experience required
high efficiency: it can reduce the labor force ,and equals to the packaging ability of  5-10 people.
Low cost:the cost of pe belt was 5 times lower than the pp belt
good stability:imported servo control system helps to reduce the mechanical drive and mechanical wear,expand the   lifespan
touch screen operation, easy to understand and operate
equipped with an alarm system,helps to reduce the occurrence fraction defective.
The tightness of the packaging pe belt can be adjustable.
Pneumatic alignment device, make the products more neat and beauty.
Adopt double push and double pressure actuating mechanism, individual height adjustment, cartons can be smooth access to the packaging department to pack.
