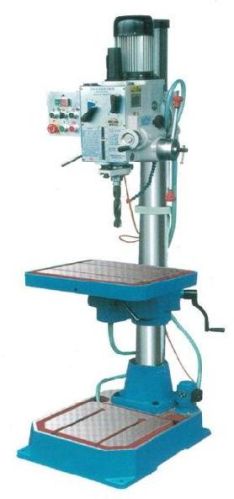

Pedestal Drill Machine

Made in China

Geared headed tapping drill

Swivel head, automatic feeding & coolant system

Maximum drilling capacity - 40 mm

Maximum tapping capacity - Cast Iron (32 mm) / Steel (24 mm)

Diameter of column - 115 mm

Spindle travel - 110 mm

Distance from spindle axis to column axis - 261.5 mm

Maximum distance from spindle nose to table - 745 mm

Maximum distance from spindle nose to base - 1245 mm

Spindle taper - MT 4

Spindle speed ranges - 50 to 1250 rpm

Spindle speed series - 6

Spindle feeds - 0.12 / 0.18 . 0.25 mm/r

Dimension of work table - 540 x 470 mm

Table travel - 515 mm

Main motor power - 1.1 KW

Coolant motor power - 0.4 KW

Machine weight - 350 Kgs.
