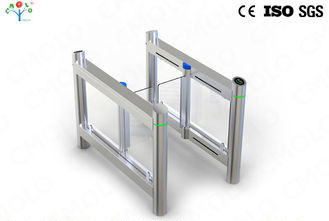

Pedestrian Automatic Security Door (CPW-322BS)

We offer Pedestrian Automatic Security Door (cpw-322bs).
CMOLO Swing Gate Turnstile (CPW-322BS)
Function Specifications:
Both directions can be set as controlled mode or free mode.
NO mode & NC mode can be switched over by users easily & freely.
Self-recovery function: The machine will recovery automaticlly with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
Self-examine Function: It is convenient for users to maintain and use.
Tailgating-detection function.
Intruding-alarm function.
Anti-pinch function: Protection against finger entrapment and personal injury.
Emergency-escape function: The obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.
Each machine can be set by Physical Address (Optional).
Equipped with free control software for man-machine interface & control command SDK.
Framework Specifications:
Framework: 304 (Standard) 316 grade stainless steel
Thickness of Ply: 1.5mm (Standard) 2.0mm
Finishing: Brushed surface (Standard) Polishing surface
Material of Obstacle: Stainless steel (Default) Organic glass (Optional) Tempered glass (Optional)
Passage Width: 550mm (Default) 1500mm (Max)
Electric Specifications:
Power Voltage: AC220V AC85~230V
Operation Voltage: DC24V
Operation Current: 3A 5A (Max)
Driving Motor: Brushless DC motor
Communication Interface: RS485 (1CH) RS232 (3CH); Available to CAN BUS and Ethernet (Optional)
Control IO: Relay Out (6CH) Level Input (4CH)
Transit Speed: 30~45 passage minute
Temperature: -20~60 Degrees
Work Environment: Indoor
Traffic-light Indication
