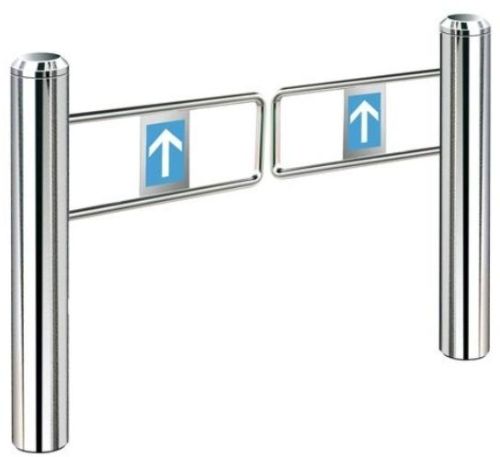

Pedestrian Swing Gate

We are offering pedestrian swing gate, applied for shopping malls, railway stations and subway. Specifications:-
pole-type pedestrian swing gates widely applied to shopping malls, railway stations, subway and pedestrian passage
dimensions:
pole diameter: 169mm
pole height: 1,050mm/3.44 feet
arm length: 500 to 900mm/default length is 500mm)
packing weight: 40kg
material: 304 stainless steel, thickness 2.0mm, brushed or polished finished
power supply: 220v ac, 50hz
driving motor: brushed dc motor (24v)
input interface: dry contact signal or 12v level signal or 12v pulse signal with a pulse width ≥100ms; driving current ≥10ma
passage speed: 40 persons/minute (constantly open); 25 to 30 persons/minute (constantly closed)
arm opening and closing interval: 1 to 2 seconds
working temperature: -30 to 60°c/-22 to +140 degrees farhenheit
working humidity: 5 to 90% rh
communication interface: rs485
functions:
bidirectional function (could enter from both end)
fail safe, which means the arm will be opened when power off (or fail secure, which means the arm will be locked when power-off)
auto-lock function, the arm will be locked after legal pass-through interval is over
anti-clamping function, the arms will remain opened continually while passenger holds the arm not at the locking position, we specially designed the separation technologies of transmission of gear wheel, the slave gear will separate the master gear immediately when revolving barrier meet obstacle until the obstacle is removed and thus will not damage either gear wheel or electromotor
anti tail-after detector (customized, it needs to add a pair of infrared detector inside the cabinet on both end so it can detect illegal invasion on both end (optional))
push-button and wireless remotes (customized)
installation steps:
connect with 220v ac
connect with left-open, right-open and com three ports.
