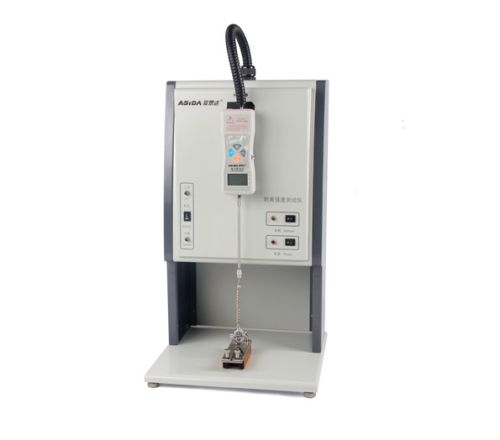

Peel Strength Tester BL12

Peel Strength Tester BL12 Lab Testing Machine Usage This machine is used in measuring adhesion strengh between tinsel and baseplate of copper clad laminate or printed circuitboard. Features 1.Patented design,attractive appearance. 2.It is equipped with ASIDA high-quality force gauge,which makes accuracy. 3.You can freely switch the units including N,kg,lb. 4.You can freely change the testing jig.This machine is equipped with a flexible jig and a rigid jig. 5.Maximum,minimum,average of force can be measured. 6.It is equipped with appropriative software and can print the graph of force. 7.Standards-compliant Conform to 7.1 of IEC-326-2 Printed Circuit Board Testing Method;Conform to GBT4677-2002 7.1.1;GBT13557-92;IPC-TM-650 2.4.9 standards. Parameters ITEM SPECIFICATION  Model BL32  MAX peel stroke 58mm  MAX pull force 5kgf（or 49N or 11lbf）  Measurement accuracy ±0.1N（Base on 49N）  Measurement speed 50.8±2.5mmmin
