Technical DataELECTRO-PNEUMATIC DRILLING MACHINE WITH TWO IN LINE SPINDLES...- Automatic drill bit down stroke with rapid approach or manual depending on version - Pneumatically adjusted....
Technical Data ELECTRO-PNEUMATIC DRILLING MACHINE WITH TWO IN LINE SPINDLES... - Automatic drill bit down stroke with rapid approach or manual depending on version - Pneumatically adjusted drilling c/c distance with two preset positions - Quick drilling axis adjustment on axis x on bar with mechanical stops in 8 preset positions - Drilling c/c distance min. =25mm, m x = 80mm. - Cutting lubrication by atomizer - Three phase motor 0.75 KW (1 Hp), 2800 rpm. Euro voltage 230/400V- 50Hz; 275/480V - 60 Hz. - Spindle rotation speed 2000 rpm. - Bit shank ? 10mm. - Vertical spindle stroke 80mm - M x. profile clamping dimensions 110 x 120 h mm - Total dimensions 600x490x 640 h mm; weight 110Kg
Share your requirements for a quick response!
Tell us what you need?

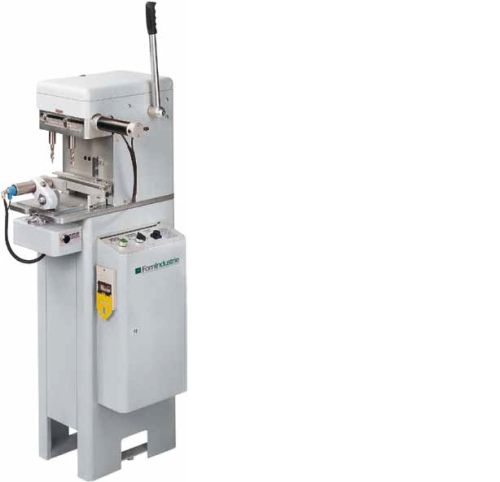

Looking for PEGASO ELECTRO PNEUMATIC DRILLING MACHINE?
