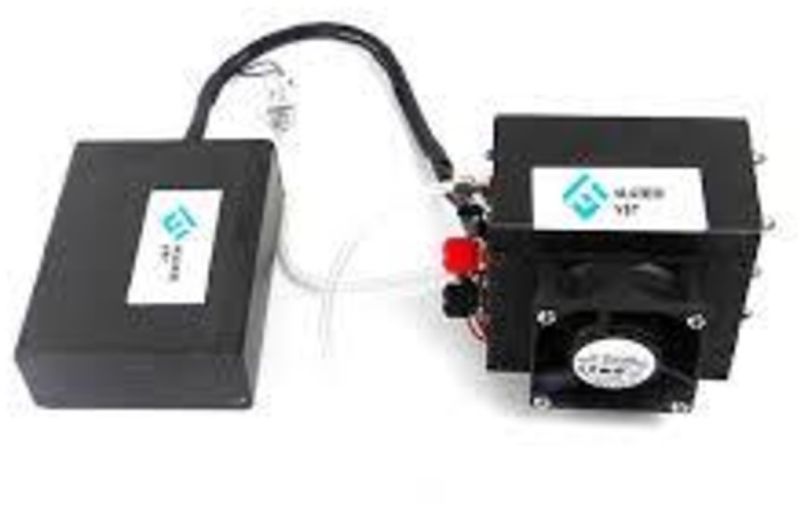

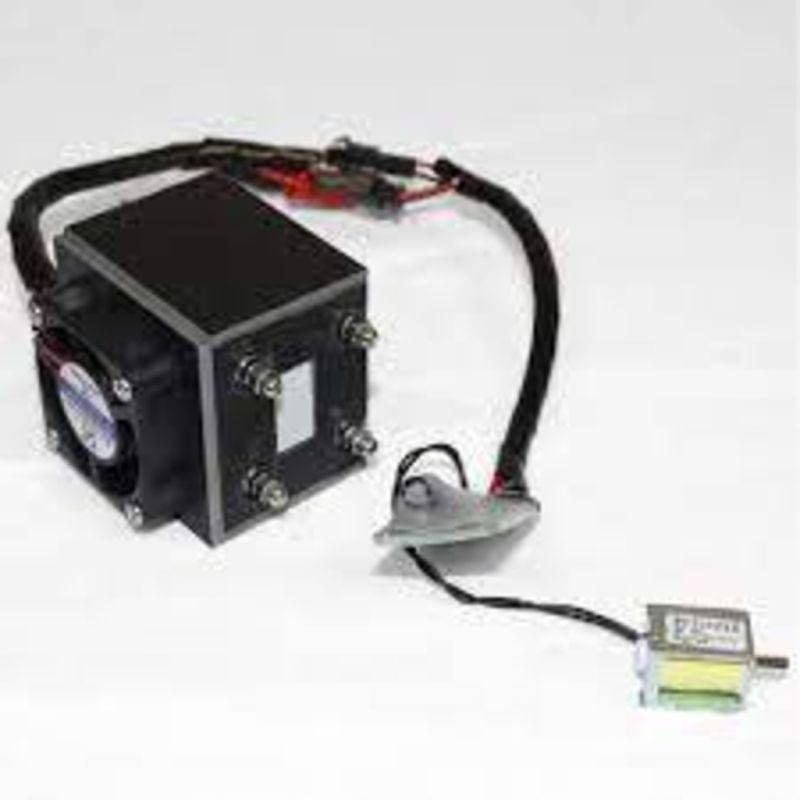

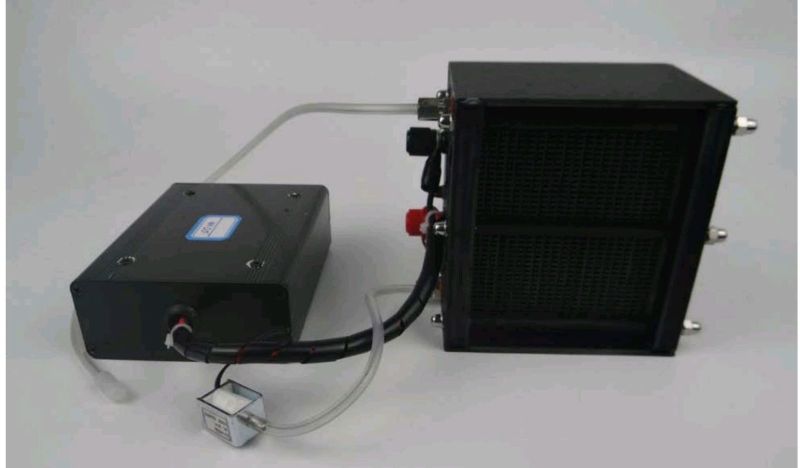

Ssi Pem Fuel Cell Test Station, Color : Black for Electrochemistry

Specification:

Output Performance:

Nominal Power: 100 W

Nominal Voltage: 12 V

Nominal Current: 8.33 A

DC Voltage Range: 10 - 17 V

Efficiency: >50% at the nominal power Hydrogen Fuel:

Hydrogen Purity: >99.99% (CO content being < 1 ppm)

Hydrogen Pressure: 0.04 - 0.06 MPa

Hydrogen Consumption: 1 160 mL/min (at nominal power) Environmental Characteristics:

Ambient Temperature: -5 to +35 ^oc

Ambient Humidity: 10% RH to 95% RH (No misting)

Storage Ambient Temperature: -10 to +50 ^oc

Noise:       dB

Physical Characteristics:

Stack Size (mm): 94*85*93

Stack Weight: TBD

Controller Size (mm): TBD

Controller Weight: TBD

System Size (mm): TBD

System Weight: 0.77 kg
