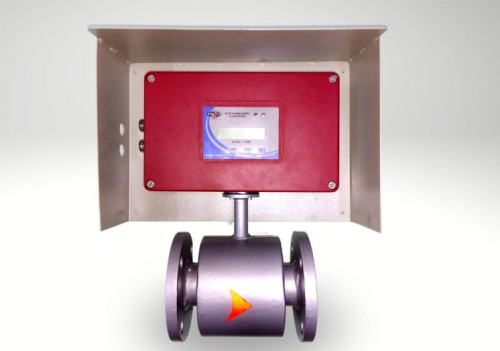

PRIMA Cast Aluminium PEMAG-910 Electromagnetic Flow Meter, Operating Temperature : 2-50°C

Introduction:
Electromagnetic flowmeters accurately measure the flow rate of conducting liquids or slurries flowing in closed pipes. Due to its simple and proper design, the electromagnetic flowmeter is an obstruction less & maintenance-free instrument in place of the conventional mechanical flow measuring device. The use of “Pulsed DC” technology offers the highest ability & better measuring accuracy in the form of 4-20mA DC output linearly proportional to the volumetric flow.
Applications:
Effluent Treatment Plants, Sewage Treatment plants, Water Supply Schemes, Steel & Aluminium, Pulp & Paper, Chemical & Fertilizers Food & Drugs, Pumps Valve, Calibration Lab, Dairy Industry, Corrosive Liquid, Municipal Corporation, Sugar Industry, Textile Industries, Dyeing & Printing, Hotels & Resorts, Water Parks, and Buildings & Infrastructure.
Features:

• Size DIN 10 to DIN 3000 NB pipeline.
• High accuracy better than + 0.5% of reading.
• Zero Pressure Drop.
• Suitable for High Viscosity Conductive Liquids.
• Digital Flow rate/ Totalizer Indication/ Batching system.
• Isolated Transmitting Output 4-20 mA.
• No Grounding Ring is required.
• Minimum Upstream & Downstream Straight Length.
• Compact & Rugged, IP 65 Protection.
• Remote Flow Indication Totalizer/ batching System through GSM Modem.
