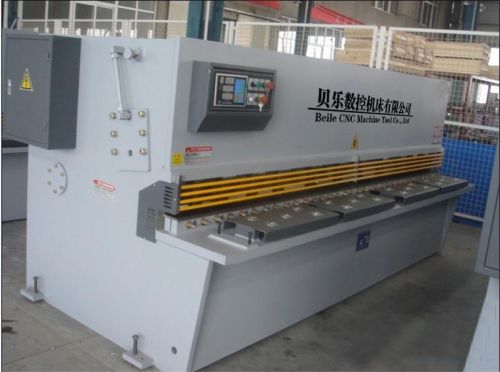

Pendulum Hydraulic Plate Shears, Brand Name : Baylor

We are offering pendulum hydraulic plate shears.
specifications shearing thickness shearingwidth shearing angle trip number the rack behind main motor overall dimensions
mm mm (°) min-1 mm kw mm
4×2500 4 2500 1°30′ 20 20－500 5.5 3110×1500×1450
4×3200 4 3200 1°30′ 18 20－500 5.5 3840×1685×1620
4×4000 4 4000 1°30′ 15 20－500 5.5 4640×1850×1700
6×2500 6 2500 1°30′ 18 20－500 7.5 3130×1530×1600
6×3200 6 3200 1°30′ 15 20－500 7.5 3840×1675×1620
6×4000 6 4000 1°30′ 14 20－500 7.5 4630×1800×1620
6×5000 6 5000 1°30′ 8 20－500 11 5770×2380×2255
6×6000 6 6000 1°30′ 7 20－500 11 6810×2530×3250
8×2500 8 2500 1°30′ 10 20－500 11 3140×1665×1620
8×3200 8 3200 1°30′ 9 20－500 11 3587×1800×1650
8×4000 8 4000 1°30′ 8 20－600 11 4667×1910×1650
8×5000 8 5000 1°30′ 7 20－600 15 5612×2600×2350
10×2500 10 2500 1°30′ 10 20－600 15 3200×1850×1760
10×3200 10 3200 1°30′ 10 20－600 15 3900×1900×1760
12×2500 12 2500 2° 9 20－800 18.5 3210×1920×1850
12×3200 12 3200 2° 8 20－800 18.5 3910×2040×1920
12×4000 12 4000 2° 7 20－800 18.5 4725×2000×2040
12×5000 12 5000 2° 8 20－800 22 5750×2260×2240
16×2500 16 2500 2°30′ 8 20－800 22 3300×2150×1880
16×3200 16 3200 2°30′ 8 20－800 22 4105×2325×2220
16×4000 16 4000 2°30′ 7 20－800 22 4905×2385×2250
20×2500 20 2500 2°30′ 6 20－800 30 3400×2350×2700
20×3200 20 3200 2°30′ 5 20－800 30 4100×2350×2730
20×4000 20 4000 2°30′ 5 20－800 30 4900×2350×2760
25×2500 25 2500 3° 5 20－800 37 3480×2410×2750
25×3200 25 3200 3° 5 20－800 37 4180×2410×2690
25×4000 25 4000 3° 5 20－800 37 4985×2410×2690
32×2500 32 2500 3°30′ 4 20－800 45 3300×3450×3200
32×3200 32 3200 3°30′ 4 20－800 45 4197×3450×3250
40×2500 40 2500 3°30′ 3 20－800 55 3300×3770×3600
1, the first generation of hydraulic plate shears.
2, the overall frame, the tool post welding, vibration to eliminate stress, good accuracy stable.
3, adopts advanced integrated hydraulic system, good reliability.
4, adopts the three support rolling guide rail, eliminate support gap and improve the quality of shear.
5, the blade gap handwheel adjustment rapid, accurate and convenient.
