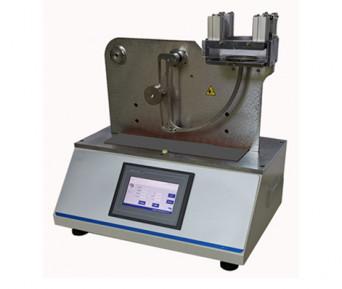

Contact SupplierPendulum impact tester is to measure the energy to burst and penetrate the center of a specimen, which is determined by loss in mechanical work capacity due to the expenditure of kinetic energy by a pendulum. The test gives a quantitative measurement of impact resistance properties of pendulum of films, sheets, composites, foils, paper and other materials. Pendulum impact resistance tester standards astm d3420, nf t54-116, gb 8809 pendulum impact resistance tester features plc control and touch screen operation pneumatic specimen clamping and pendulum automatic release data auto statistics, storage adjustable range and electronic measurement microprinter rs232 port and software (optional) pendulum impact resistance tester technical specifications impact energy 1 j, 2 j, 3 j (standard) resolution 0.001 j impact head size ф25.4 mm, ф19 mm, ф12.7 mm (customization is available) specimen clamp diameter ф89 mm, ф60 mm specimen size 100 mm x 100 mm or ф100 mm gas supply pressure 0.6 mpa port size ф6 mm power supply ac 220v 50hz
