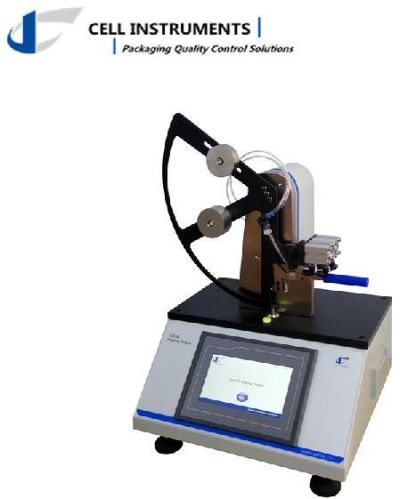

Pendulum Tear Tester, Brand Name : Cell Instruments

Pendulum tear tester takes the elmendorf method and is used to determinate tearing resistance property of films, sheets, flexible pvc, pvdc, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textile and non-woven, etc.
Pendulum tear tester standards: astm d1922, astm d1424, astm d689, iso 6383, iso 1974, gbt16578.2-2009, gbt 455, tappi t414
pendulum tear tester features
1. plc control and touch screen operation
2. pneumatic specimen clamping and pendulum automatic release
3. data auto statistics, storage and micro printing
4. rs232 port and software (optional)
5. microprinter
technical data
pendulum capacity 200 gf, 400 gf, 800 gf, 1600 gf, 3200 gf, 6400 gf
gas source 0.6 mpa
tearing arm 104±1mm
tearing initial angle 27.5 ±0.5°
power ac 220v 50hz (customization available)
