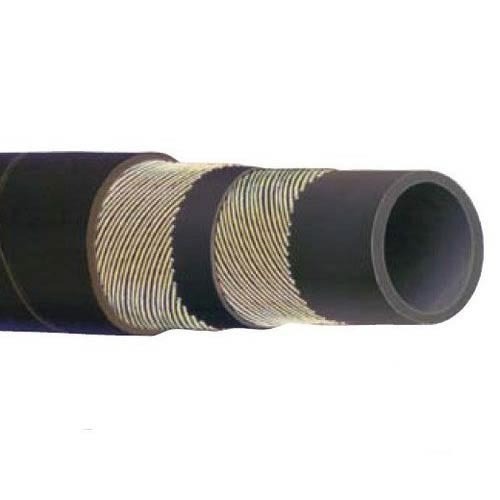

Specification: HIGH PRESSURE STEAM HOSE WITH 2 WIRE BRAIDS (TEMPERATURE 206°C at 16 Bar Steam Pressure) Nominal Bore Outside Diameter Max. Steam Pressure Bar Min. Brust Pressure Bar CONFORMS TO BIS 5342 â�� 1877 Type 2 ISO 6134 â�� 1981 Type 3 IS 10655- 1983 Types 2, 3,4 Applications In Min Mm 3/8 10.0 22.5 16 160 ½ 12.5 26.0 16 160 5/8 16.0 29.5 16 160 3/4 19.0 32.0 16 160 1 25.0 38.5 16 160 For heating of Tanks, pipes in chemical works, abutting out fire in retneries, heating of press, platens, operating sleam pumps, clearing of vessels, etc. Features: High Quality Strong design Resistant to heat
