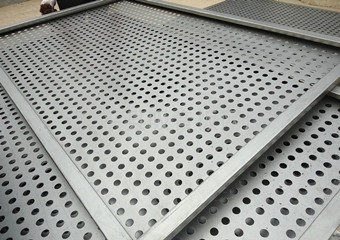

Perforated Metal Sheet, Brand Name : jiuxiang

We are offering 16.perforated metal sheet punching hole meshes
material thickness
(mm)
aperture
(mm) hole spacing
(mm) wide
(m) length
(m) punching rate
(%) weight
(kgm2)
coil sheet 0.2 6 2 1 20 44 0.88
0.35 5 4 1 20 24 2
0.45 6 3 1 20 35 2.5
0.8 3 3 1 20 19.6 3
flat sheet 0.5 1 1 1 2 19.6 3.14
0.8 1.5 1.5 1 2 19.6 5
1.5 2 2 1 2 19.6 9.4
3 5 16 1 2 19.6 18.8
stainless metal plate 0.5 1 1 1 2 19.6 3.14
0.8 1.5 1.5 1 2 19.6 5
1 2 2 1 2 19.6 6.28
2 5 16 1 2 19.6 6.28
aluminium plate 0.5 1 1 1 2 19.6 1.08
0.8 3 3 1 2 19.6 1.72
1.5 2 2 1 2 19.6 3.24
2 4 16 1 2 19.6 4.23
steel graing is a kind of open steel member wth its bearing bar & cross bar jonting at intersections either by welding or by locking.
