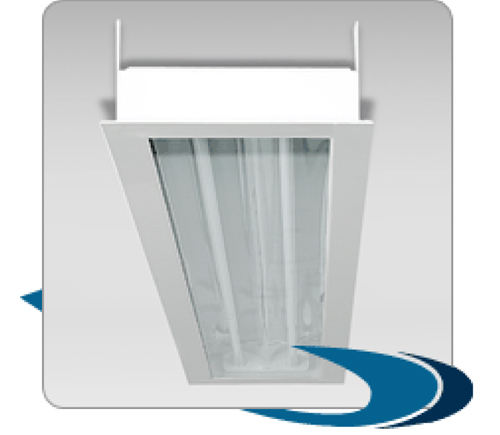

Peripheral Ceiling Lights

BRR Light Fittings have been design-ed and developed to be used in any controlled environment, where access to the fitting from above the controlled area is preferred. They have been installed in many different industries, such as pharmaceutical, biotechnological, electronic, food, screen printing and many more.

The BRR is a recessed, airtight light fitting and is accessible from the technical void above the controlled area, thus reducing the potential risk of contamination within the controlled area.

The light weight access tray is easily lifted away once the retaining screws have been removed, giving full access to the tubes and electrical connections.

The housing is manufactured from zinc coated steel which is then powder coated after production. Special brackets are fitted on the top of the housing thus allowing the fixture to be clamped and tightened in the ceiling.

An anodized aluminum reflector is installed above the T5 lamps to achieve the required light distribution. In order to limit the number of tools during maintenance, all electrical connections between the different electrical components are made by means of a 3 way push/fit connector

have been designed and developed to be used in any controlled environment, where access to the fitting from above the controlled area is preferred. They have been installed in many different industries, such as pharmaceutical, biotechnological, electronic, food, screen printing and many more.

The BRR is a recessed, airtight light fitting and is accessible from the technical void above the controlled area, thus reducing the potential risk of contamination within the controlled area. The light weight access tray is easily lifted away once the retaining screws have been removed, giving full access to the tubes and electrical connections.

The housing is manufactured from zinc coated steel which is then powder coated after production. Special brackets are fitted on the top of the ho using thus allowing the fixture to be clam ped and tightened in the ceiling.

An anodized aluminum reflector is installed above the T5 lam ps to achieve the required light distribution. In order to limit the number of tools during maintenance, all electrical connections between the different electrical components are made by means of a 3 way push/fit connector.

• 2 x 54W
• 4 x 14W

• Emergency / battery back up
• Dimmable ballast
• 304 stainless steel frame
• Deflectors
• Walkover tray
• Second ballast {for 2 x 54W)
