Peripheral Driven Clariflocculator

Peripheral driven clariflocculator:

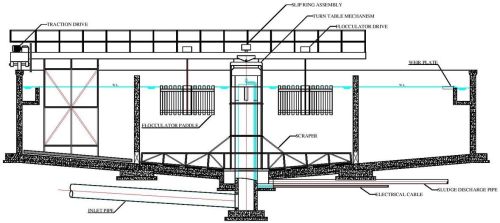

avighna claritec™ offers rotating structural bridge cum walkway spanning half or ¾ of the tank diameter with hand rail.
Features of peripheral driven clariflocculator
• in if type clariflocculator: slewing ring assembly is placed over the r.c.c center pier.
• in hf type clariflocculator: center mechanism (concentric dual drive) is placed over the r.c.c center pier.
• traction bridge rest over the center mechanism slewing ring and supported with hinge pinpivot arrangement.
• slip ring (current collector) assembly is provided.
• diameter of the flocculation tank is determined according to the diameter of the clarifier tank.
• peripheral drive is designed with m.s.r.l. c.s.r.l along with the traction wheel running on the tank wall.
• flocculation paddles coverage ranges from 20 to 25% of the cross-sectional area of the flocculation tank.
• flocculator drive is comprised of:
1. drive mechanism (act-dh act-cdd)
2. worm reducer (make: as per client requirement)
3. chain drive with guard
4. motor (make: as per client requirement)
• drives for flocculator are selected according to the application and the required torque, to achieve the tip speed of the flocculation paddle up to 0.3 – 0.4 mminute.
• traction drive is comprised of:
1. traction wheel
2. worm reducer (make: as per client requirement)
3. chain drive with guard
4. motor (make: as per client requirement)
• traction drives for clarifiers are selected according to the application and the required torque, to achieve the tip speed of scraper to 2.5 mminute.
Optional features provided by avighna claritec™
• mechanical or electro-mechanical overload protection devices.
• surface skimmer & v notch weir plate.
• telescopic sludge discharge valve.
• stator and rotor type clariflocculator.
