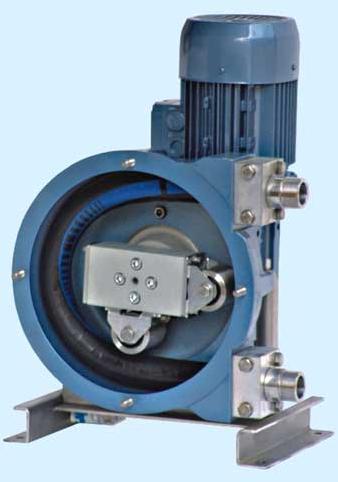

Peristaltic Transfer Pump

We acknowledged among the leading manufacturers, suppliers, and exporters of peristaltic transfer pumps. The operating principle of hose pumps includes two or three rotating rollers. These rollers gradually compress a tube, forcing liquid through the tube just ahead of each roller. The tube returns to its original shape after rollers pass so it can be filled with more liquid again. We offer tube pumps at reasonable prices. our peristaltic transfer pumps are available in three different series to suit the customer’s requirements

• peristaltic pumps for pumping small volumes and for accurate metering
  • flow rate : 28 lph to 6400lph
  • pressure : 8 to 15bar
  • tube diameter :10 –16 – 26mm
  • one or two heads
  • fitted with pulse dampener

• peristaltic pumps for pumping medium volumes
  • flow rate : 3000 lph to 18000 lph
  • pressure : 8 to 15bar
  • tube diameter : 40 –55 – 68mm
  • one or two heads
  • fitted with pulse dampener
  • fitted with inlet hopper

• peristaltic pumps for pumping high flow
  • flow rate : 10000 lph to 60000 lph
  • pressure : 8 to 15bar
  • tube diameter : 76mm
  • one or two heads
  • fitted with pulse dampener
  • fitted with inlet hopper

• no seal
• no valve
• self priming
• pump can run dry
• pumped fluid always remains inside the tube
• time saving in c.i.p applications
• reverse flow by reversing motor
• pump mixed phases
• minimum shear

• fragile and sensitive fluids : emulsions, fruit salads, sparkling wines, tomatoes, purees, dairy products, antifoaming agents, whole grapes, fruit juices
• compound fluids : butchery waste, additive metering, paper pulp, grape marc, animal feeds, minced fruit, polymers, sugar beet and potato process waste
• abrasive and corrosive fluids : bentonite, mud and sediment, enamels, pigments, lime wash, casting slip, plaster mortar, concrete, fertilizers, manure slurry. Non-pollutant or pollutant fluids: rubber latex, food products
