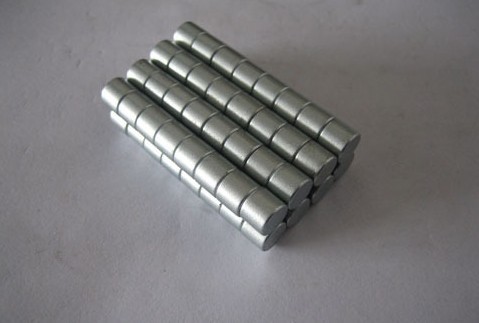

Permanent Disc Neodymium Magnet, Brand Name : aimmagnet

We offer permanent disc neodymium magnet size
disc:max:diameter 202mm*45mm thickness---min:diameter 1.5mm*0.5mm thickness
permanent disc neodymium magnet's grade
n35, n38, n40, n42, n45, n48, n50, n52(max. Operational temperature: 80c)
n35m, n38m, n40m, n42m, n45m, n48m(max. Operational temperature: 100c)
n35h, n38h, n40h, n42h, n45h, n48h, (max. Operational temperature: 120c)
n33sh, n35sh, n38sh, n40sh, n42sh(max. Operational temperature: 150c)
n28uh, n30uh, n33uh, n35uh, n38uh(max. Operational temperature: up to 180c)
n28eh, n30eh, n33eh, n35eh(max. Operational temperature: up to 200c)
n30ah, n33ah, n35ah(max. Operational temperature: up to 230c)
permanent disc neodymium magnet's outsanding product:
1)high performance:n52,n48m,48sh,42uh,38eh,33ah
2)high working temperature:the ah series with 40 k oe super-high coervice force can replace smco magnets successfully.
3)high consistency:the cpk of br and hcj are much higher than 1.67 the consisitency of surface magnetic field and magnetic flux can be controlled with +/-1%
4)high anti-corrosion:the sale spray test and humid heat test of the high anti-corrosion coating could be more than 1000 hours
5) low weight loss
