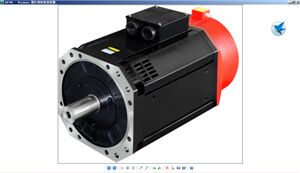

Permanent Magnet AC Servo Motors

We are offering permanent magnet ac servo motors. Model name description catalog number explanation
1 plant code ctb ctb plant motor code ctb company product
2 voltage class 2:200v 4:400v 6:660 v class 400v
3 power code see standard specification table 12 n.m
4 motor type code s:natural cooling servo motor z: forced cooling permanent magnet servo motor s series servo motor
5 encoder code code encoder type
b: no encoder
g: optical-electricity encoder(increment)
r: rotary transformer(12b)
s: sin-cos encoder: 2048p
a: absolute value encoder(17b) built-in optical encoder
6 motor base code base model: s series: a-g p series :a b c e f g sb motor base
7 basic rotate speed code code rotate speed rmin
d5 50
01 100
02 200
03 300
04 500
07 750 code rotate speed rmin
10 1000
15 1500
20 2000
25 2500
30 3000 basic rotate speed:1500rmin
8 installation method code 3: b3 horizontally-mounted
5: b5 flanged mounting
35: b35horizontally-flanged mounting
flanged mounting
9 shaft extension structure code g: optical shaft j: bond shaft
optical shapt
10 brake b: electromagnetic power lost brake have brake
