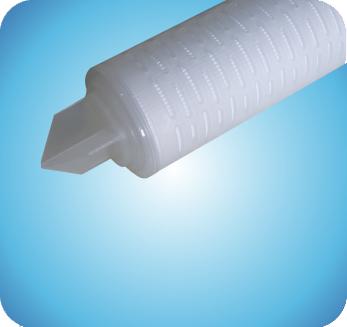

Pes Membrane Pleated Cartridge Filter

Features & benefits
a. Unique hydrophilic polyethersulfone cartridges with absolutely rated
b. Cartridges consist of a polyethersulfone membrane with thermally bonded polypropylene components to provide a very durable filter with only two materials of construction.
c. The compatibility with a broad range of chemicals and physiologicalinertness
d. Cartridges 100％ integrity tested by bubble point and diffusional flow to ensure consistent and reliable performance
e. Flushed with ultrapure water to remove any manufacturing debris
f. No adhesive,thermal bonded manufacturing enable the smallest contaminant extraction and high durability.
g. Increased surface area with excellent flow rates
applications
a. Final filtration for bacteria removal in ro system
b. Sterilization of food and beverages
c. Micro-filtration in ultrapure water system
d. Beverage and filtration/clarification
e. Photographic solutions
f. Plating solutions
g. Magnetic coatings
material of construction
a. Media:hydrophilic polypropylene
b. Support layer:polypropylene
c. Core/cage/end adaptor:polypropylene
d. Sealing method:thermal bonding
recommended operating conditions
a. Max.differential pressure:
b. Forward-70psi (4.8bar) at 25℃
c. Forward-40psi (2.7bar) at 25℃
d. Filters change recommended at 1.5bar
e. Max.operating temperature:80℃
f. Sterilization:20times,30minutes cycles at 121℃
cartridge dimensions
a. Filtration area:0.55㎡ each 10″length
b. Outer diameter:69mm
c. Nominal length:5″,10″,20″,30″,40″etc
d. Micron rating:0.1,0.2,0.45µm
