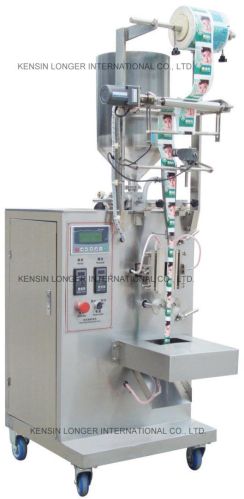

Automatic liquid paste packing machine like pesticide, sauce, shampoo, jelly, tomato paste and juice pouch packing machine.
Kl-50yb
(i) features
1. Simple structure, the machine function is steady and reliable, easy
operation and simple maintenance.
2.plc control, touch screen, easy operation, beautiful outlook.
3. Intelligent photosensor tracking, positioning the trademark accuracy.
4. Automatic forming bag, filling, measuring, sealing, finished product output
all the process technology parameter.
(ii) application
suitable to pack liquid paste materials, such as shampoo, jelly, tomato
paste, juice and so on.
(iii) specification
model kl-50yb
raw materials liquid paste
measuring range 1-50ml
filing method liquid pump
bag size length:20-130mm width:20-130mm
sealing type back seal
speed 30-60bagsmin
power ac220v 50hz 370w
dimension (l)600x(w)600x(h)1600 mm
weight gw 220kg
film paperpolyethylene；cellophanepolyethylene；
plated aluminumpolyethylene; bopppolyethylene；nylonpolyethylene and so on.
Function automatically measuring volume, forming, filling, sealing,
cutting, printing date and cutting easy tearing notches.
Remark
(iv) optional device
1.printer
2.straight line middle sealing wheel
3.net line side sealing mould
4.supper touch screen
