PET Blow Molding Machine For Bottle Jars

We are offering Pet Blow Molding Machine for Bottle Jars.

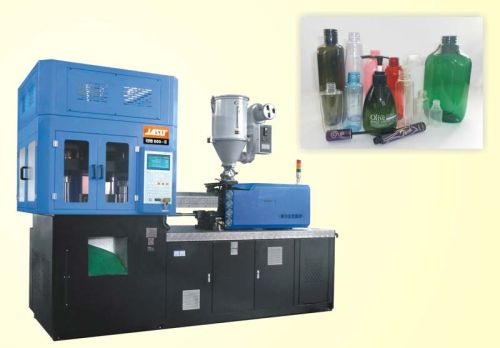

JASU ISB800A-3 is a injection stretch blow molding machine (not from performs) for PET, PC and PP containers. The machine is capable of accepting 6 cavities. Fully automatic, single step, injection stretch blow moulding machines produce containers from 0.3 litres up to 1 litres. Widely used for manufacturing bottles for pharmaceutical, healthcare, food, beverages, cosmetics and other applications.
A horizontal three station indexing head contains injection, blowing and outfeed stations which operate simultaneously in a fully automatic cycle. Highly efficient with low energy comsuption.
Suitable for use with a wide range of thermoplastic materials, including PET, PP and PC.
All machines are built to ISO9001 standards and CE certified.
Injection Stretch Blow Molding Machine ISB800A-3 Parameters
Raw Material PP,PC,PET,PCTG,Tritan
Pressure System: 140KG
Screw Diamete: 50mm
Max.Injection Weight: 195g390g
Max Injection Pressure: 1700kgcm2
Max. plasticating capacity: 24gs
Injection Mold Clamping Force: 60T
Injection Mold Trip: 430mm
Blowing Mold Clamping Force: 80kn
Blowing Mold Trip: One-side 60mm
Rotary Plate Trip: 0-360 degrees
Stretching System Trip: 150mm-170mm
Ejection System Trip: 150mm-170mm
Injection Mould Dimensions: L500xW200
Ejection Trip: 150mm-170mm
Max. Height of Bottle: 250mm
Oil Pump Motor Power: 18.5kw
Barrel and Mould Heating Power: Barrel 9 kw,Mould based on bottles
Gross Power: 35kw
Working Power: 3kw
Center Height: 1.5m
Overall Dimensions: L4.1xW1.45xH3.4m
Weight: 6T
