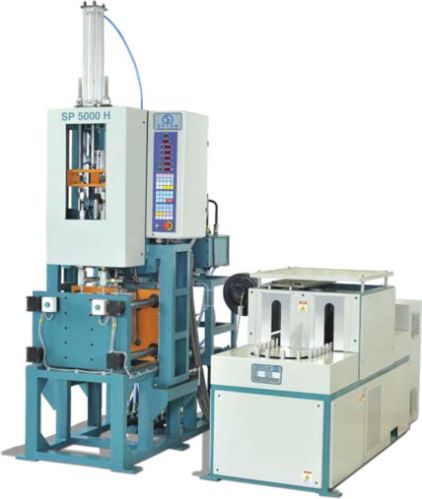

PET Blow Moulding Machine

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

These versatile machines can be used to manufacture different kinds of bottles with neck diameter of 20 mm to 150 mm. The bottle / jar capacity can range from 40 ml up until 5000 ml. Mould....

View More Details

Send Enquiry

Company Information

Telektron (India).

Kirlampudi Layout, Visakhapatnam, Andhra Pradesh

View Number

Member Since 7 Years
Nature of Business Manufacturer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

These versatile machines can be used to manufacture different kinds of bottles with neck diameter of 20 mm to 150 mm. The bottle / jar capacity can range from 40 ml up until 5000 ml.

Mould Clamping

Hydraulic mould clamping system to enhance power efficiency. It saves air consumption and hence reduces production cost.
Unique mechanical lock system for positive locking.

Heating

Close loop heating system and auto chamber temperature control (to compensate variation in preform heating due to ambient temperature).
Optional auto preform temperature control.
Positioning of heaters is better, ensuring faster and simpler heating. Individual heater position is adjustable in both axes to achieve optimum heating.
Air ventilation with controllable venting in heating chamber (for better heat penetration control).
Start-stop index type oven to minimize variation in temperature of both preforms coming out of chamber at a time.

Product Range

Versatile range to produce 40 ml to 5000 ml bottle / jar. Neck diameter ranging from 20 mm to 120 mm. Due to hydraulic operations, mould can be stopped where required. In case of small diameter bottles, this increases production rate and reduces production cost.

Safety

Two hand operations (till mould close function is complete) to prevent accidents.
ELCB in main supply for protection against electric shock.
Individual MCBs for all heaters.

Machine Model	SP-50OOH		SP-5000H-PP
Machine Type	Semi Automatic
Max Blowing Pressure	30 kg/cm²
Locking Force	25 Ton
Mould thickness	175 mm - 250 mm
Opening Stroke	250 mm
Distance between Tie Rods	445 mm
Total Weight (Approx)	1500 kg		2000 kg
	Two Cavity	Single Cavity	Two Cavity	Single Cavity
Production	800-900 Bottles/Hour (1 litre Water Bottle)	400 Jars/Hour (83 mm neck, 2 litres)	450-500	250-300
Max Neck Size	53 mm	120 mm	53 mm	120 mm
Max Product Diameter	130 mm	200 mm	130 mm	200 mm
Max Product Volume	2 litres	5 litres	2 litres	Litres
Utility Requirements
Compressed Air
System Air	7 CFM		4 CFM
Blowing Air	22 CFM for 1 litre water bottle @ 800 BPH @ 30 kg/cm²		16 CFM tor 1 litre water bottle @ 500 BPH @ 30 kg/cm²
Cooling Tower	50 LPM @ 2 to 4 kg/10 TR		50 LPM @ 2 to 4 kg/10 TR
Chiller	-		3 TR
Power - total Connected Load (without Utilities)
Heating Load	9 kW		24 kW
Other Load	3 kW		4 kW
Total Load	12 kW		28 kW
	415 VAC (±5%, 3 Phase 4 Wire + E, 50 Hz
	(Other specifications available on request)
