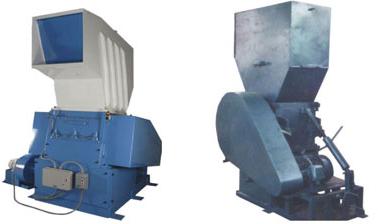

Hopper Feed Grinder(HBG-series)

Heavy duty welded/machined steel construction
Cross cut body design maximized rotor dia and output for same chamber size compared to horizontal cut body grinders. It laso provide easy access in side chamber for ease of blade change and maintanance.
Outboard mounted plummer - block heavy duty spherical roller bearings with K-type aleeve to prevent contaminations entering the bearings ,and K-sleeve makes it is to remove bearings for easy maintanance.

Special design hopper attached to grinding chamber for enhanced cutting efficiency .Rotor and bed Knives
are adjusted from outside of the granulator in the Precise Fixture/jig. constant cutting circle due to
adjustable Knives.

Model	Rotor Dia	Rotor Rows/ Blades	Fix Bed Rows/ Blades	Chamber Size	Output Kg/ Hr	Power HP
HBG-24/24	420 X 600	3/3	2/2	600 X 600	250-300	40
HBG-24/48	420 X 1000	5/5	2/2	600 X 1000	400-450	60
HBG-30/30	520 X 750	5/5	2/2	750 X 750	450-500	60
HBG-30/60	520 X 1500	5/5	2/2	750 X 1500	650-750	90
HBG-40/40	620 X 1000	5/5	2/2	750 X 1000	650-750	120
HBG-40/60	620 X 1500	5/5	2/2	750 X 1500	1000-1200	150
