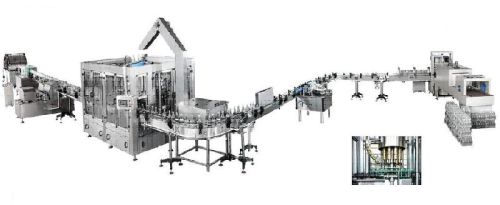

PET Bottling Machine

The carbonated filling Tri-bloc is used to bottle carbonated beverage, sparkling soft drinks, flavored soft drink with Co2.and so on in PET Bottles. This machine is integrated with washing, filling and capping in one machine. It takes bottle handling technology, which makes changing different size bottle more easily. It can do the bottles from size 200ml to 2000ml. And little spares are need when changing bottles. We suggest users to take same specification bottles, especially the same bottle neck. Our Tri-bloc uses high quality stainless steel 304, which makes sure the quality of the products. The washing we take reversing bottle methods. It has so many washing heads which will spray the inside of the bottle after the bottle is reversed. After washing there will approximate 2 seconds dropping water. The filling technology is named “Counter pressure filling”, it means when bottle enter into the filler, the filling tank will firstly inputting enough pressure to the bottle. Just after the pressure in tank is same as the bottle, filling begins. Capping we use magnetic capper. And capping power can be adjusted. We equip the machine with “No-bottle, No-Cap” system. If there is no bottle, the caps feeding will be stopped. The capper feeder is stand beside the mono-bloc, which is parallel to the machine.
