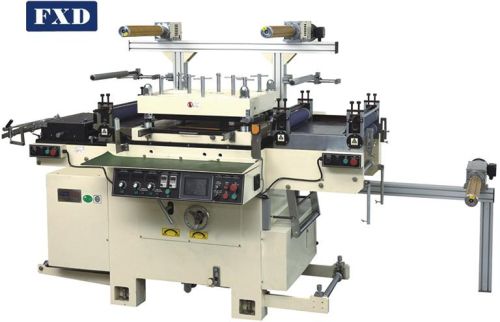

PET Film Sheet Die Punching Machine, Brand Name : FXD

We are offering pet film sheet die punching machine.
This film and sheet die cutting machine series have flat pressing and high precision die cutting unit, shifting materials and slice are controlled by servomotor. It finishes all the process of stamping and die-cut, recycle of waste material, slicing and roll winding for auto label brander simultaneously.
main features:
1: discharging rack independently which adjust easily according to product’s crafts;
2: safety (limit) sensors of main die-cut station for protect operator
3: transformer & ac inverter motor system as automatic voltage regulator
4: scanning sensor for 2nd pass efficient to die-cut for the printed labels & others (option);
5: automatic central lubrication;
technical parameters:
1: max web: 460mm
2: max die cutting size: 500*450 mm
3: max speed: 6000pcshr
4: power: ac380, 8kw
5: dimension: 3000*1650*1965 mm
6: net weight: 3500kg
