Contact SupplierPurpose:

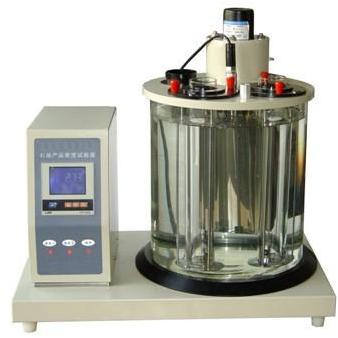

gd-1884 density meter is designed and made as per the national standard gbt 1884-2000 “test methods for density of petroleum and liquid petroleum products (densimeter methods)”. Gd-1884 density meter is suitable to determine density of liquid petroleum products using a densimeter.
working condition:
1. Ambient temperature: -10°c ~ +40°c; the temperature should not change for more than ±2°c;
2. Relative humidity: ≤85%;
3. The instrument should be placed on a flat workbench during operation and please try your best to reduce air convection during a test.
4. If the instrument is not used for a long time, please store it at a dry place.
technical parameters
1 power supply c 220v±10%, 50 hz
2 cubage of bath 300×380 mm
3 heating power 700 w; 1000 w
4 temperature controller
(1) temperature controlling range: 0°c~100°c;
(2) temperature controlling accuracy: ±0.2°c;
(3) temperature sensor: industrial platinum resistance, pt100
5 thermometer total immersion mercury thermometer with scale division of 0.2 °c.
