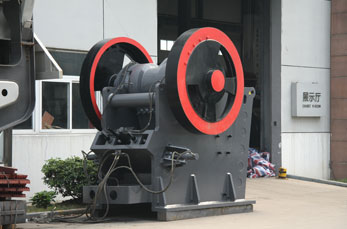

Pew Jaw Crusher

Sold By : Sagar Pharmaceuticals

Product Specifications

Supply TypeManufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

Product Overview

PEW series Jaw crusher features big crushing ratio, reliable operation, easy maintenance and low operating cost. It is the new generation product designed and produced by SBM, basing on our 30 year’s crusher production experience and the latest design conception. It does be one high efficiency and low cost crushing machine.

Features

V-shaped structure crushing cavity is able to meet a big feeding.
Movable jaw assembly adopts a high-quality steel casting and heavy eccentric shaft has also adopted forging billet for processing.
Use of finite element analysis technology helps to reach both light weight and high reliability.
Equipped with wedge adjustment devices, enable to realize automatic control and stepless adjustment.

Application

Jaw crusher is widely used in various materials processing of mining &construction industries, such as it is suit for crushing granite, marble, basalt, limestone, quartz, cobble, iron ore, copper ore, and some other mineral &rocks.

Technical Data

Model	Feed opening (mm)	Maximum feeding size (mm)	Range of discharge opening (mm)	Capacity (t/h)	Speed (r/min)	Power (kw)	Overall dimension (mm)
PEW250×1000	250×1000	220	20-40	15-50	330	30	1400×1850×1310
PEW250×1200	250×1200	220	20-40	20-50	330	37	1400×2050×1310
PEW400×600	400×600	350	35-85	15-70	250	37	1920×1460×1840
PEW760	760×1100	640	75-200	150-350	270	110	2600×2500×2200
PEW860	860×1100	720	100-225	200-500	240	132	3300×2320×3120
PEW1100	1100×1200	930	150-275	300-650	210	185	4140×2660×3560
