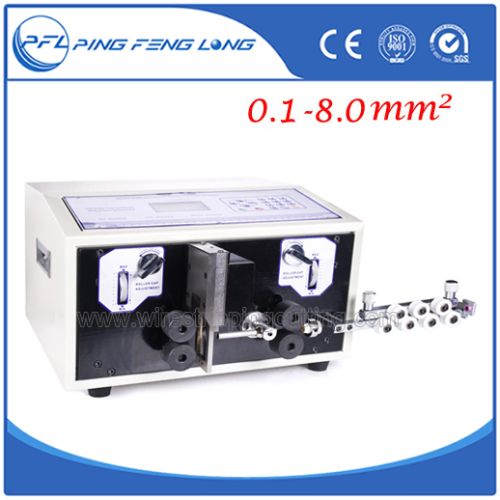

PFL-03 Wire Stripping Machine, Certification : CE

Model:pfl-03
features:
automatic full computer wire stripping machine adopt the advanced automation technology from
japan,taiwan.
It is a kind of numerical control equipment.
apply for:
widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps, toys, and other
various products of wire processing.
Optimal stripped wire pvcteflonsilica gel line . Glass fiber, etc.
specification:
available wire cross-section range: 0.2~8.0mm2
conduit diameter: 10mm
cutting length: 1~9999mm
cutting tolerance: ±(0.002×l) (l=cutting length)
stripping length: head 0~35mm, tail 0~15mm
middle stripping section: max 11
speed: 3000-5000pcsh
display way: english lcd display
drive mode: 4 drives
blade material: hard tungsten steel
appropriate wire: electrical wires,pvcglass fiberteflon cables
power supply: 220v50hz 110v60hz
power rating: 300w
measurement: 390x350x255mm
weight: 33kg
note:
operating video,detailed information of each model and any further questions,please contact with us any time!
