Contact SupplierMaterials: | Finish /Plating: |
|
|
 |  |
Application: | Function: |
For indoor or outdoor use with all types of unarmored cable. | Provide seal on outer sheath of the unarmored cable. |
 |  |
Optional Threads: | Accessories: |
Operating Temp: Standard seals -20* C To +80*C |
Matching Accessories available like PVC surrounds Lock Nuts, Earth Tags, and Reducers Adaptors etc. As per customer’s specifications. |

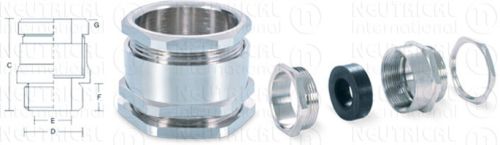

Products Name (Part No.) | Size | A | B | C | D | E | F |
NI-CG-PG-090 | PG-7 | 14 | 16 | 21 | PG-7 | 10 | 5 |
NI-CG-PG-091 | PG-9 | 18 | 20 | 24 | PG-9 | 13 | 6 |
NI-CG-PG-092 | PG-11 | 20 | 22 | 27 | PG-11 | 15 | 7 |
NI-CG-PG-093 | PG-13 | 23 | 25 | 27 | PG-13 | 17 | 7 |
NI-CG-PG-094 | PG-16 | 25 | 28 | 28 | PG-16 | 19 | 7 |
NI-CG-PG-095 | PG-21 | 31 | 34 | 31 | PG-21 | 24 | 7 |
NI-CG-PG-096 | PG-29 | 42 | 45 | 34 | PG-29 | 32 | 9 |
NI-CG-PG-097 | PG-36 | 51 | 57 | 40 | PG-36 | 43 | 10 |
NI-CG-PG-098 | PG-42 | 59 | 64 | 43 | PG-42 | 48 | 10 |
NI-CG-PG-099 | PG-48 | 64 | 71 | 47 | PG-48 | 52 | 10 |
