BOPP Film Pgmp Tape, Certification : ISO 9001:2008 Certified

MOQ100 Roll
MaterialBOPP Film,Polyester
Packaging TypeCorrugated Box
CertificationISO 9001:2008 Certified
ApplicationWarning Indication
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

MaterialBOPP Film,Polyester
ApplicationWarning Indication
CertificationISO 9001:2008 Certified
FeatureAntistatic,Heat Resistant,Long Life,Waterproof
AdhesiveAcrylic Based
Packaging TypeCorrugated Box
Adhesive SideSingle Sided
DesignPlain

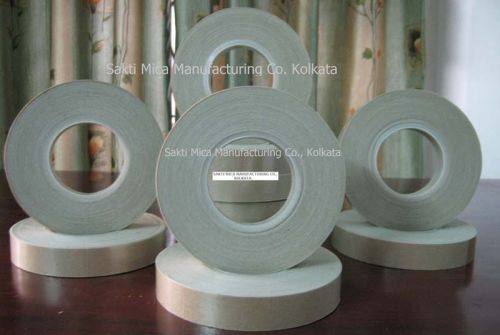

Sakti Mica Manufacturing Co. is a reliable Manufacturer & Exporter of PGMP Tape. We deal in high quality Polyester Glass Mica Polyester Tape (PGMP), the specifications of which can be found below.
1.0 SCOPE
This specification laysdown requirements of Polyester Glass Mica Paper Polyester Tape.
APPLICATION
Suitable for rotor bars and overhangs insulation of HT coils.
GENERAL

The materials shall be made from muscovite micapaper 100 gsm with Glass cloth backing
1.7 mils thickness and reinforced both side with Polyester film 0.012 mm thickness
With Isophthalic alkyd binder for the continuous operation at 155^oC.

Specifications

Particulars.	Unit	Specific Requirements
Mica Paper	gms/m²	80 ± 5
Glass Cloth	gms/m²	36 ± 3
Polyester Film (Backing)	gms/m²	17 ± 2
Polyester Film (Facing)	gms/m²	17 ± 2
Binder	gms/m²	20 ± 5
Mass Unit Area	gms/m²	170 ± 5
